Bugatti Bolide--What if...

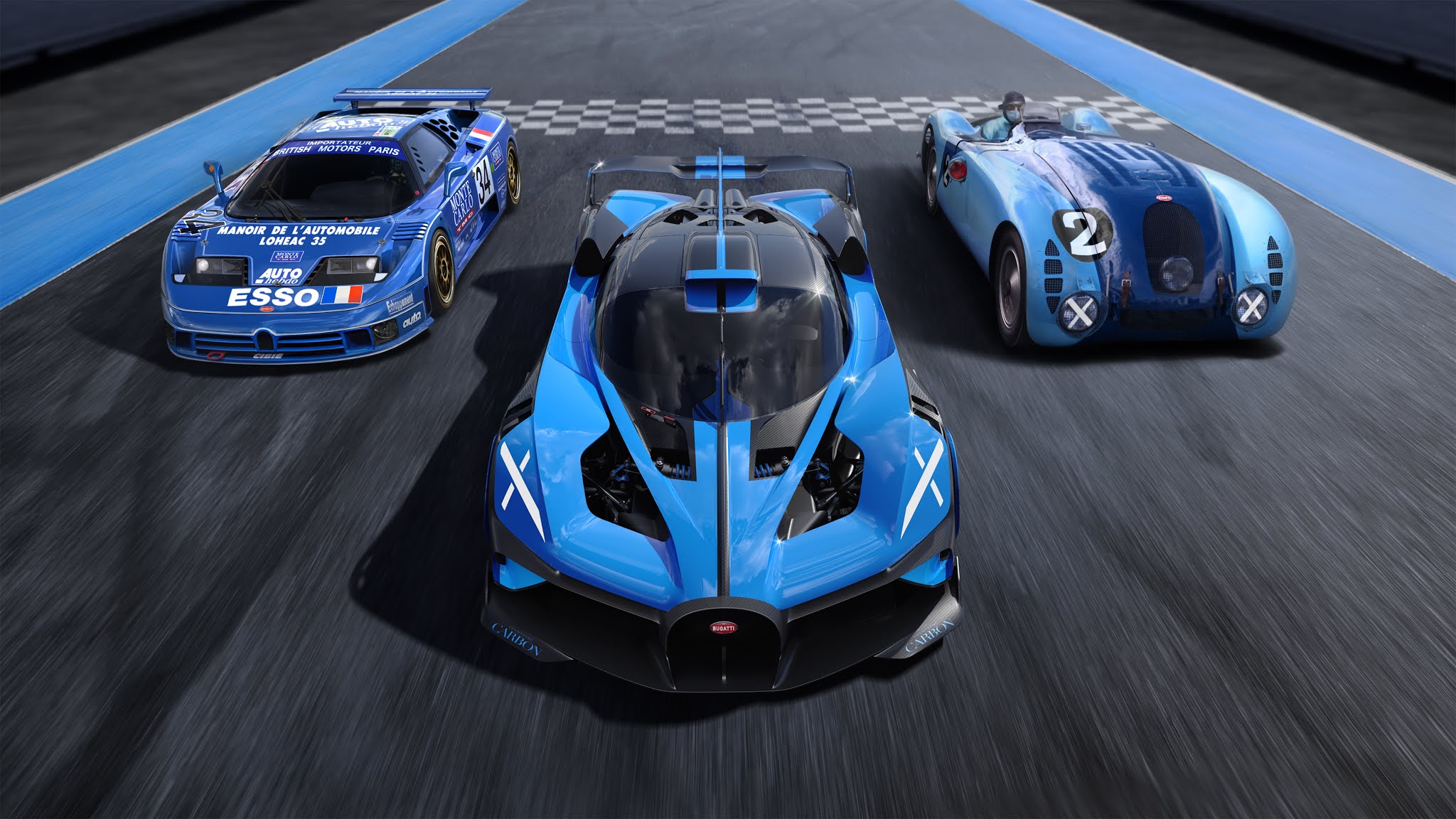

Reduced, raw, authentic. With the technological concept of the Bugatti Bolide, the French luxury car manufacturer is now providing the answer to the question of what if Bugatti built a radically light vehicle around its iconic 8.0-liter W16 engine? The experimental study of the Bugatti Bolide is a track-oriented hyper sports car featuring a W16 engine derived from series production as powertrain combined with a minimal body for maximum downforce. It, therefore, promises to offer the ultimate Bugatti performance kick.

At the same time, the Bugatti Bolide is the most extreme, uncompromising, fastest and lightest vehicle concept in the company's recent history--with an incredible weight-to-power ratio of 0.68 kg per hp (0.67 kg per PS). This is made possible by the combination of the W16 engine with 1,825hp (1,850PS) and a vehicle weight of just 1,240 kilograms. The Bugatti Bolide achieves figures that are almost on par with Formula 1 while its top speed is well above 500kph--without compromising maximum handling and maximum agility. The Bolide takes 3:07.1 minutes to complete a lap of Le Mans and 5:23.1 minutes to get around the Nürburgring's Nordschleife loop.

The Idea – What If? An Experiment.

"Bugatti stands for the continuous quest for technological innovations--in alignment with the company's brand values of excellence, courage, dedication. And Bugatti never stands still. We are perpetually aiming for new and exciting goals, and the question that we always keep in mind is: what if?" says Stephan Winkelmann, President of Bugatti. "We asked ourselves how we could realize the mighty W16 engine as a technical symbol of the brand in its purest form--with solely four wheels, engine, gearbox, steering wheel and, as the only luxury, two seats. Important aspects of our considerations were fine-tuning our iconic powertrain without any limitations as regards the weight-to-power ratio. These considerations resulted in the Bugatti Bolide. An uncompromising experiment, a thoroughbred, a Pur Sang that, in its brute exclusivity, impresses above all with high performance, low weight, and a driving experience in a whole new dimension. Driving the Bolide is like riding on a cannonball."

The Technology – Powertrain Designed Specifically for the Racetrack

"The Bolide is the ultimate answer to the question of what if Bugatti built a track-focused hyper sports car that met the FIA's safety requirements? Designed around the W16 powertrain with the minimum body structure and unbelievable performance data. The result: the smallest possible shell for a breathtaking performance vehicle that allows the W16 to truly come into its own," explains Stefan Ellrott, member of the Board of Management of Bugatti and Head of Technical Development. "All of Bugatti's expertise has been condensed into the Bugatti Bolide. It is, therefore, an innovative information source for future technologies. The Bolide is thus more than just an intellectual exercise.

"In terms of technology and organization, the Bolide was one of the most ambitious projects of my career," says Frank Götzke. After playing a crucial role in the development of the Veyron 16.4 and the Chiron, the engineer was also responsible for the technical concept of the Bolide. In only eight months, he created a completely new vehicle around the well-known Bugatti W16 all-wheel powertrain, which was highly modified for the project.

The 8.0-liter W16-cylinder engine with 1,825hp (1,850PS) and 1,850 Newton-meters of torque is at its heart. Bugatti has designed the drive specifically for use on the racetrack and has optimized the engine and gearbox in particular for higher engine speeds. Among other things, this includes dethrottling the intake and exhaust system to achieve an even faster, more spontaneous, and extreme response characteristic. The four newly-developed turbochargers are fitted with optimised blades in order to build up more boost pressure and power at higher engine speeds. In order to achieve optimum lubrication even under extremely high centrifugal forces, the oil circuit, oil pressure, check valves, baffles, oil tanks, oil reservoirs, and pump design of the dry-sump lubrication have been optimized. The weight of the drive system is also significantly reduced at the same time.

Instead of water-to-air intercooling, the Bugatti Bolide has air-to-air intercooling with water pre-cooling for optimal performance on the racetrack. The inflow takes place from the front via one internal and one external air duct on each side of the vehicle. The two water coolers, which are arranged in front of the front axle, provide a more effective radiator system in terms of flow than is customary even in Formula 1. Three air-cooled oil coolers for engine, transmission, and differential with water pre-cooling reduce the temperature even on dynamically demanding race laps. Newly developed and hybrid carbon titanium turbofan radial compressors ventilate and cool the high-performance racing brake system.

1,850 PS and 1,240 Kilograms--Weight-To-Power Ratio Of 0.68 kg/hp (0.67 kg/PS)

In order to achieve a dry weight of 1,240 kilograms, all the stops have been pulled out with regard to the materials and production processes used, both in terms of what is currently feasible and what will be possible in the future.

All the screw and fastening elements of the Bolide are made completely out of titanium. In addition, hollow, thin-walled functional components made of an aerospace titanium alloy are used in many places. These originate from a 3D printer and are extremely thin with wall thicknesses of up to 0.5 millimeters. However, they are still very stable with a tensile strength of 1,250 Newtons per square millimeter. Hybrid components, such as the 0.5-meter-long auxiliary drive shaft, combine wound high-strength and ultra-stiff carbon fibres with 3D-printed titanium end fittings and can withstand a continuous operating temperature of up to 260 degrees Celsius. In this example, this reduces the weight by around half to 1.5 kilograms and, due to the reduction of the rotating masses, increases the revving ability of the engine at the same time. The forces acting on the front and rear wings are transferred by ultralight but very solid titanium elements. They weigh a mere 600grams at the front and an astounding 325grams at the rear.

A worldwide innovation is the morphable outer skin of the intake scoop on the roof, which provides active airflow optimization. If the vehicle is driven at a slow speed, the surface of the scoop remains smooth. In contrast, a field of bubbles bulges out when driven at fast speeds. This reduces the aerodynamic drag of the scoop by 10-percent and ensures a 17-percent reduction in lift forces. In addition, the flow onto the rear wing is optimized. At 320kph, the downforce is at 1,800-kilograms at the rear wing and 800-kilograms at the front wing.

As in Formula 1, the Bolide decelerates with racing brakes with ceramic discs and coatings. The brake calipers weigh only 2.4-kilograms each. The front forged magnesium rims with central lock weigh 7.4-kilograms, while the ones at the rear weigh 8.4-kilograms--with a very wide tire size of 340-millimeters on the front axle and 400-millimeters on the rear axle (Chiron: 285-mm at the front and 355-mm at the rear). A compressed-air-driven jack system with four rams makes tire changing easier, a quick refueling system allows pressure refueling.

Among other things, a push rod kinematics system with horizontal dampers ensures precise handling. The oil reservoirs are arranged inside the dampers, which improves aerodynamics. Weighing only 100grams, the push-rods are designed as a thin-walled and flow-optimized titanium lightweight construction with a buckling load of 3.5 tons, which corresponds to a dry weight of nearly two Chirons. The welded control arms made of aerospace-grade stainless steel have a tensile strength of 1,200-Newtons per square millimetre and are also designed as wing profiles.

Light Monocoque Made of Carbon

The Bugatti team developed a light monocoque made of carbon around the drive. The integral front end flanged to it is also made of high-strength carbon fibres, as are the fully aerodynamically effective underbody and the monocoque itself. The single-fibre tensile strength of the fibers used is 6,750-Newtons per square millimeter, the single-fiber stiffness is 350,000-Newtons per square millimeter. These represent figures that are only reached in the aerospace industry. The rear frame, designed as a welded steel assembly, offers a maximum tensile strength of 1,200-Newtons per square millimetre, despite a wall thickness of only 1-millimetre--this is made possible by the use of high-strength stainless steel, which is otherwise only used in aviation.

With an overall height of only 995-millimetres, the Bugatti Bolide is exactly the same height as the historic Bugatti Type 35, depending on the steering wheel and truncated windscreen, and about 300-millimetres flatter than the Chiron. The wheelbase is 2.75-meters and the width 1.99-meters. Like in an LMP1 racing car, the occupants fold up the doors that are hinged at the front at an angle, sit on a sill that is only 70-millimetres wide, as in a Type 35, and then position their feet in the interior. Thanks to a sidewall that is about 150-millimeters lower than that of the Type 35, the procedure is quick and easy--for drivers up to a body height of 6.5 feet (2 metres).

Safety is ensured with safety equipment designed in accordance with FIA regulations. These include HANS device compatibility, an automatic fire extinguishing system, a towing device, pressure refuelling with fuel bladder, central locks for the wheels, lightweight polycarbonate windows, and a six-point harness system. The monocoque side floors with integrated carbon coolant pipes are simultaneously designed as side-impact structures and structural reinforcement of the monocoque. The driver can see all the relevant data on a motorsport display. For an optimum sitting position, both the pedals and the passenger footrest can be moved by 150-millimeters.
